Prometheus labels allow you to model your application deployment in the manner best suited to your organisation. As directly supporting every potential configurations would be impossible, we offer relabelling to give you the flexibility to configure things how you'd like.
How labels propagate can be a bit tricky to get your head around initially. The basic principle is that your service discovery provides you with metadata such as machine type, tags, region in __meta_* labels, and which you then relabel into the labels you'd like for your targets to have with relabel_configs. You can also filter targets with the drop and keep actions.
Similarly when actually scraping the targets, metric_relabel_configs allow you to tweak the timeseries coming back from the scrape. Filtering can also be used as a temporary measure to deal with expensive metrics.
To help you understanding how this all fits together, I've put together flowcharts of the semantics in Prometheus 0.17.0. These cover from how targets are created, scraped and what manipulations are performed before timeseries are inserted into the database:

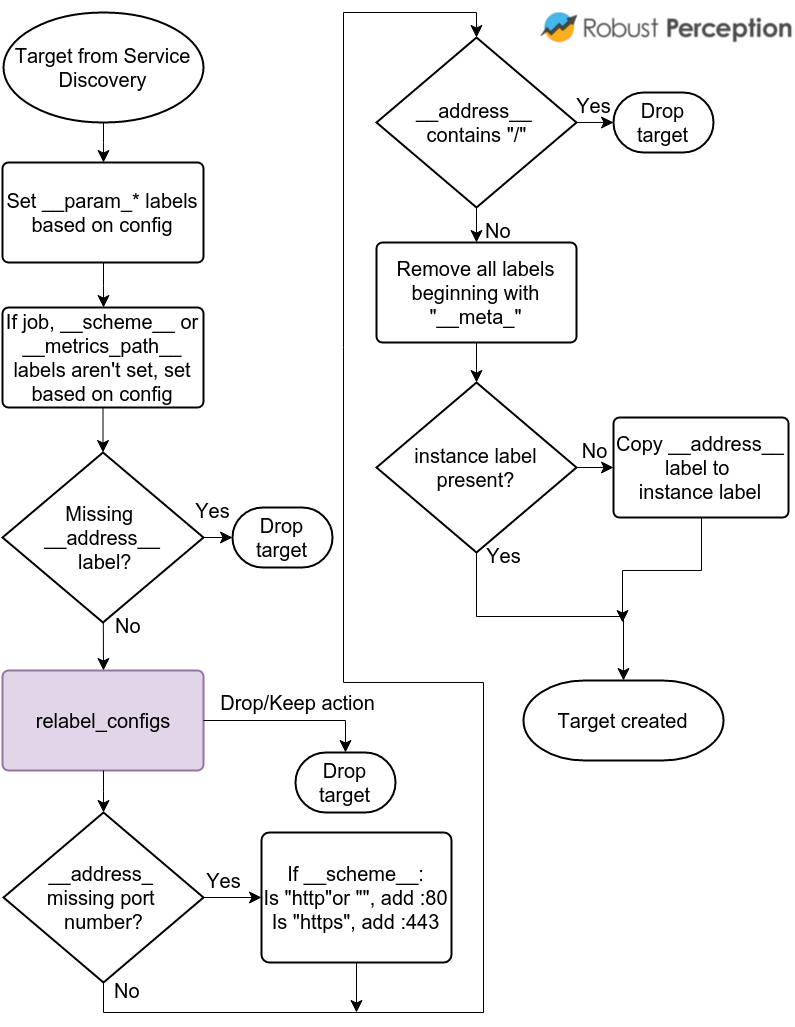

Targets and Targets Labels come from Service Discovery
As this point Prometheus knows the targets that'll be scraped, and these are what you see on the Status page. The core here is the relabelling in purple. Everything else is defaults and sanity checks to make your life easier.

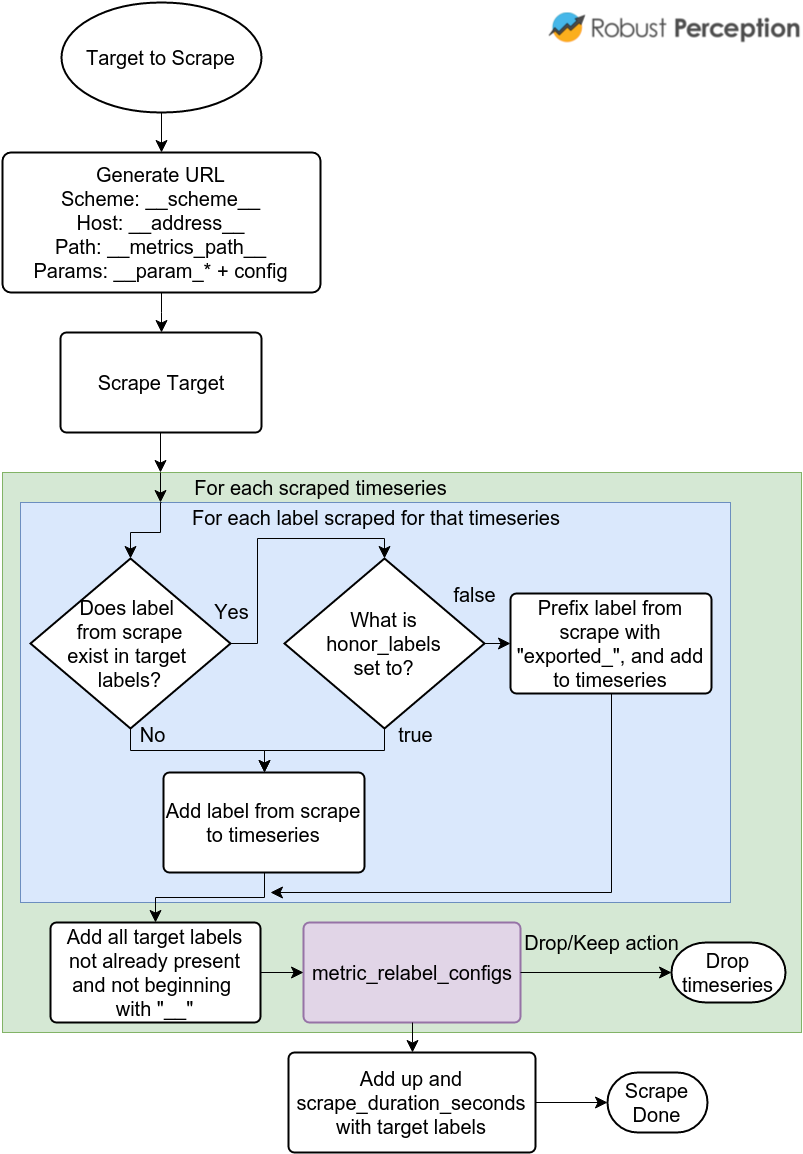

When a target is actually scraped, this is what happens:
Labels from scrapes are a mix of Scraped Labels and Target Labels
The __param_* labels contain the first value of each URL parameter, allowing you to relabel the first value. At scrape time, these are combined back with the second and subsequent parameter values.
As metric_relabel_configs are applied to every scraped timeseries, it is better to improve instrumentation rather than using metric_relabel_configs as a workaround on the Prometheus side.
